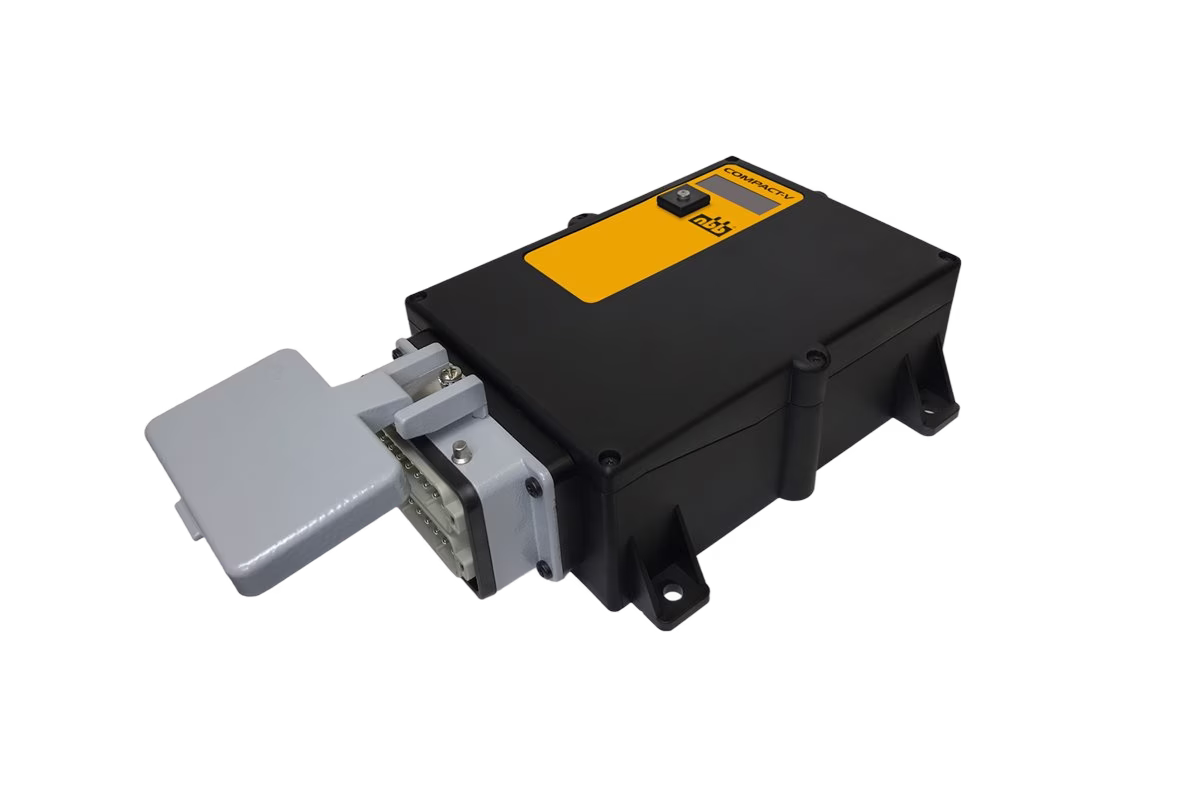

Compact-V DC-R34

The Compact V is a medium sized receiver that caters for a high number of outputs and interfaces. One of the most popular and adaptable receivers.
Precision engineering Combined with efficient, Ergonomic design are the DNA of NBB™ controls and components GMBH of Germany.

Enquire Now

Features/Specifications

Technical Datasheet

High quality German robust design

Synthesised scanning receiver with 67 radio channels

Up to 28 PWM outputs. PWM outputs can also be configured as CMOS on/off

4 CMOS outputs. A total of 34 CMOS outputs if no PWM is required

2 CMOS ground side switching

4 analog 0-10V outputs

Up to 4 digital opto inputs

3 DC analog inputs

2 x CAN interfaces

RS232 / RS485 interface

4A max switching current

Force guided emergency stop relay
