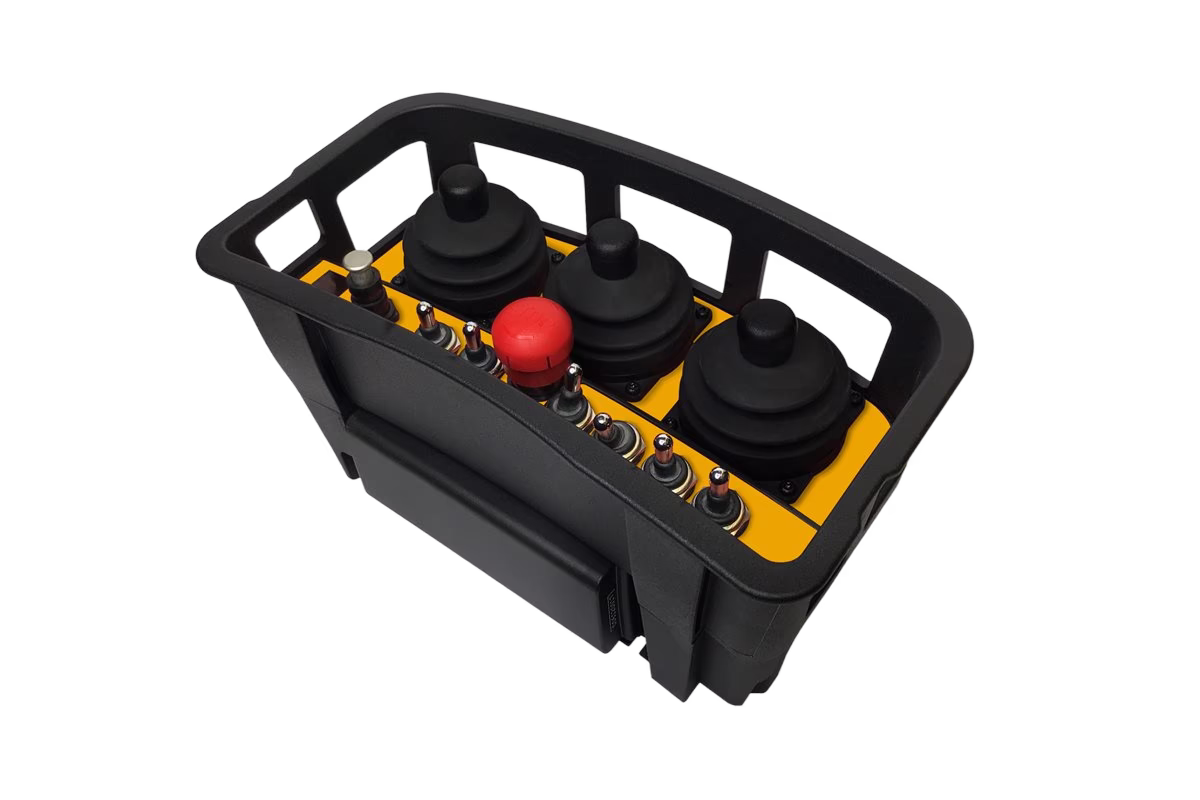

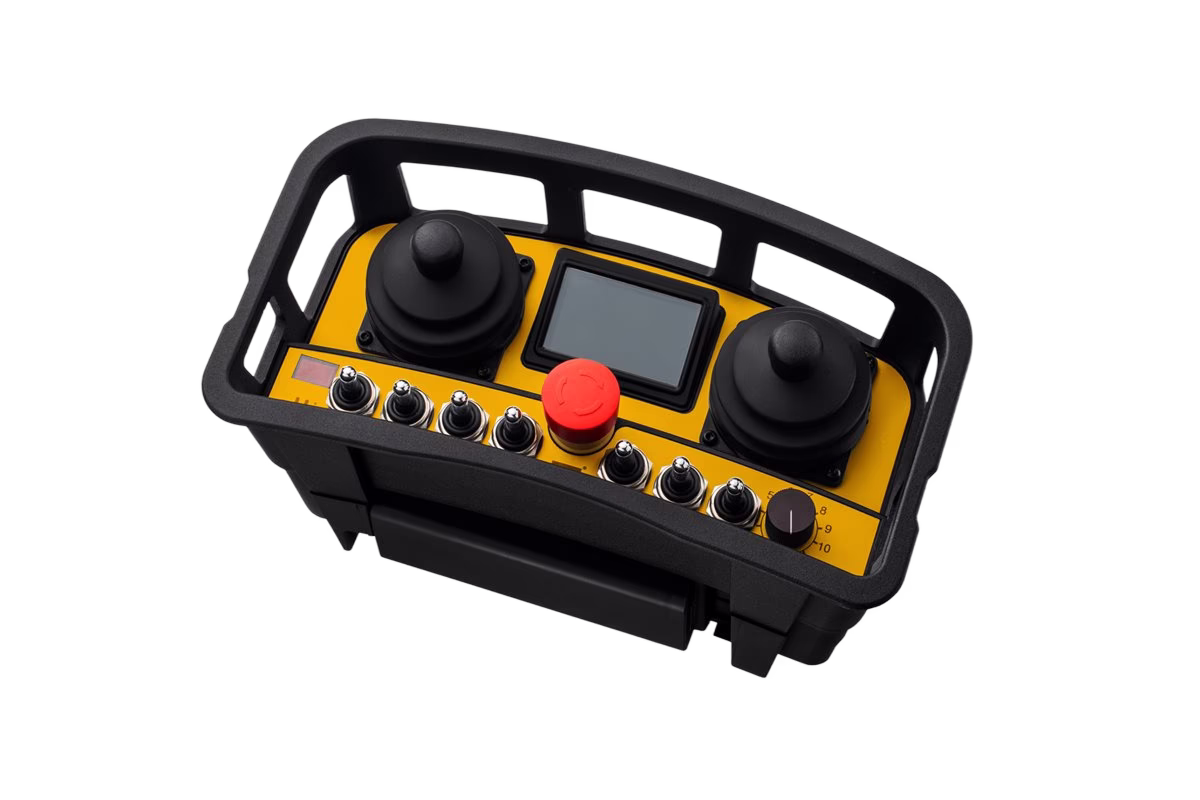

Nano-Minor A2

The Nano-Minor is a proven work horse that is embedded in industries all over the globe. Robust, adaptable and reliable.
Precision engineering Combined with efficient, Ergonomic design are the DNA of NBB™ controls and components GMBH of Germany.

Enquire Now

Features/Specifications

Technical Datasheet

High quality German robust design

1, 2 and 3 bidirectional joystick options. Proportional or stepped.

Joysticks can be gated for forward / reverse operation.

Plug and play joysticks. You don’t have to send it away to replace the joysticks. It is a fully moulded receptacle under the joysticks. Water can’t enter the housing through the joysticks.

Up to 8 toggle switch or push button positions. Up to 6 push button switches on side of transmitter.

Additional switches can be installed when less than 3 joysticks

Potentiometer controls available

Programmable tilt switch

Transmitter programming is done locally in Australia

Data feedback via customised LED’s and 2 x 7 segment LED display. Additional LED?s can be mounted on the face of the transmitter for data feedback.

LCD screen option for display of functions or customised data feedback.

Key lockable emergency stop switch
